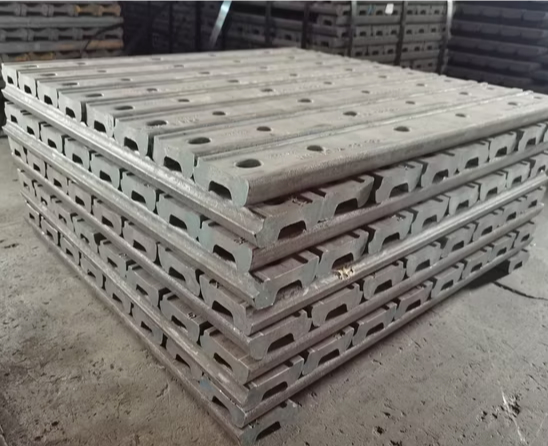

P65 Railway Fish Plate with 6 and 4 Holes for Stability

  • P65 Railway Fish Plate with 6 and 4 Holes for Stability
  • P65 Railway Fish Plate with 6 and 4 Holes for Stability
Lugar de origem China
Marca Kingrail
Certificação CB, CE, EMC, RoHS SABER
Número do modelo P65
Quantidade de ordem mínima Negociável
Preço negotiable
Detalhes da embalagem Pacote padrão de exportação ou conforme solicitação do cliente
Tempo de entrega 1-30 dias úteis
Termos de pagamento L/C,D/A,D/P,T/T,Western Union,MoneyGram
Habilidade da fonte 1800000 toneladas por ano

Contacte-me para amostras e cupons grátis.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se tiver alguma preocupação, fornecemos ajuda online 24 horas por dia.

x
Detalhes do produto
Produção OEM Tratamento de superfície Pintura
Instalação Fácil Acabamento de superfície Máquina ou pintura por esterilização
Força de rendimento ≥ 500 MPa Processo Forjamento a quente ou forjamento em matriz aberta
Projeto Simples Uso Estrada de ferro
Tipo Eixos Diâmetro da roda 1-1450 mm
Tamanhos Conforme o desenho do cliente Aplicação Sistema de Suspensão de Veículos Ferroviários
Dimensão Conforme o desenho do cliente Resistência à corrosão Forte
Cor Preto
Deixe um recado
Descrição de produto
Model NO.
P65
Customized
Customized
Certification
ISO14001, ISO9001
Type
Fish Plate
Product
P65 Fish Plate
Materials
K54
Surface
Plain
Tensile Strength
Min 844 MPa
Yiled Strength
Min 530 MPa
Holes
6 Holes
Transport Package
Steel Belt
Specification
1m*1m*1m
Trademark
SHWEDO
Origin
China
HS Code
7302400000
Production Capacity
1000 Tons Each Month

Product Description


High-Performance Fish Plate
Our high-performance fish plate is a crucial component in railway infrastructure, masterfully engineered to connect rails seamlessly with fasteners. This ensures uncompromised safety and efficiency in rail operations.
Whether for mining railways or passenger railways, our fish plate stands as the preferred choice. Engineered with cutting-edge technology and crafted from robust materials, this fish plate guarantees an unrivaled connection force. It offers a cost-effective solution with easy maintenance, enabling effortless rail replacements. Ideal for heavy-load railways, it promises outstanding performance across varied terrains and challenging working conditions.
Specification
Applications
1. Low-Speed Railway: Applicable where the passing speed does not exceed 120KM/H, ensuring safe and reliable rail operations.
2. Heavy Load Railway: Engineered for sections where the passing speed in a straight direction does not exceed 60KM/H, offering robust support for substantial loads.
3. Mining Railway: Designed for mining railways where the passing speed in a straight direction is limited to50KM/H, ensuring durability under demanding conditions.
4. Steel Factory Railroad: Optimized for operational speeds not exceeding 50KM/H, providing consistent performance in industrial environments.
5. Tourism Track: Perfect for leisure railways with speeds capped at 50KM/H, ensuring both safety and enjoyment.

Key Information


Tensile Strength: Minimum 840 MPa, ensuring robust performance and reliability in all applications.
Yield Strength: Minimum 540 MPa, providing excellent resistance to deformation under stress.
Cold Bend Test: 30-degree bend with no cracking, showcasing exceptional material flexibility and resilience.
Materials: Constructed from 45#, 55#, 56NBand K54 steel, known for their superior strength and durability.
Hardness: Exceeds 240 HBW, ensuring long-lasting performance and minimal wear.
